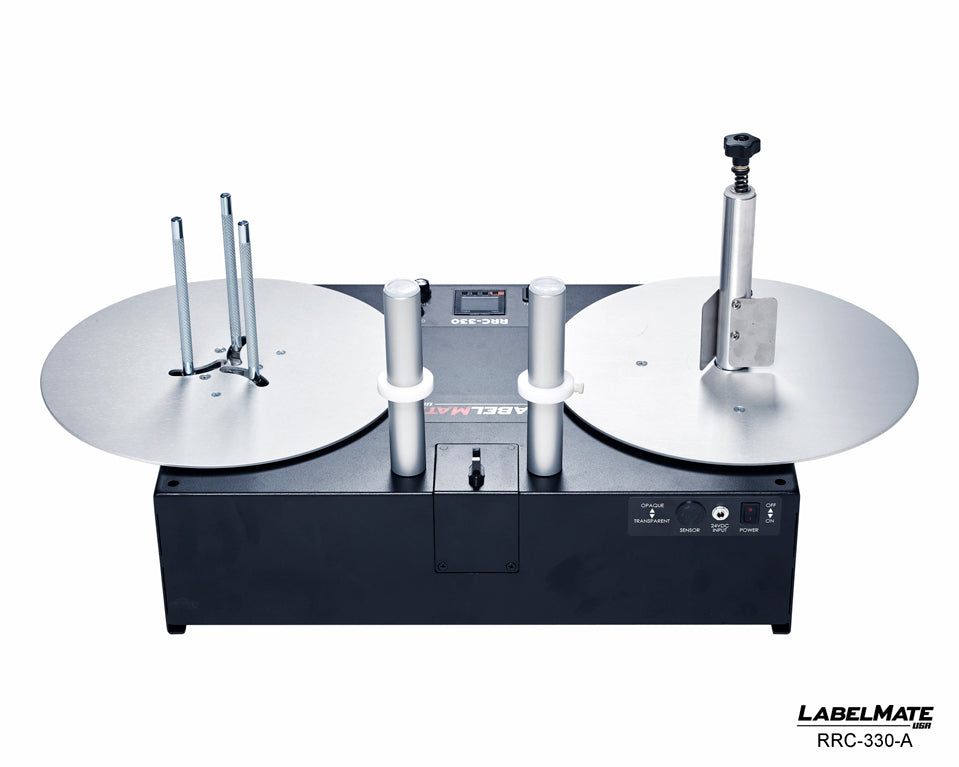

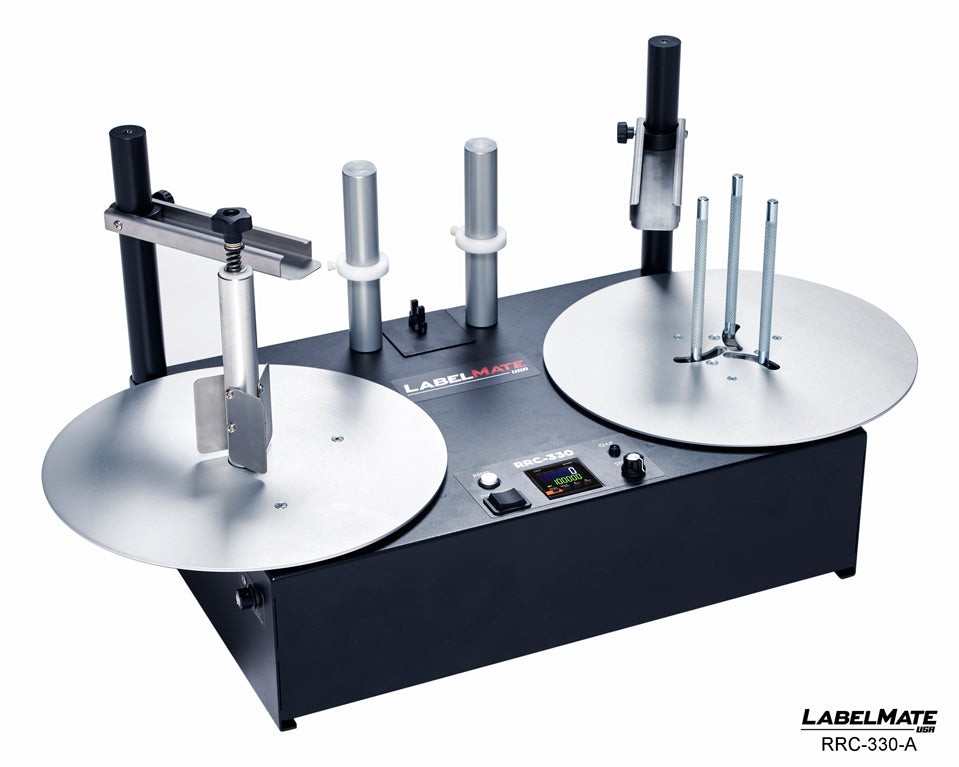

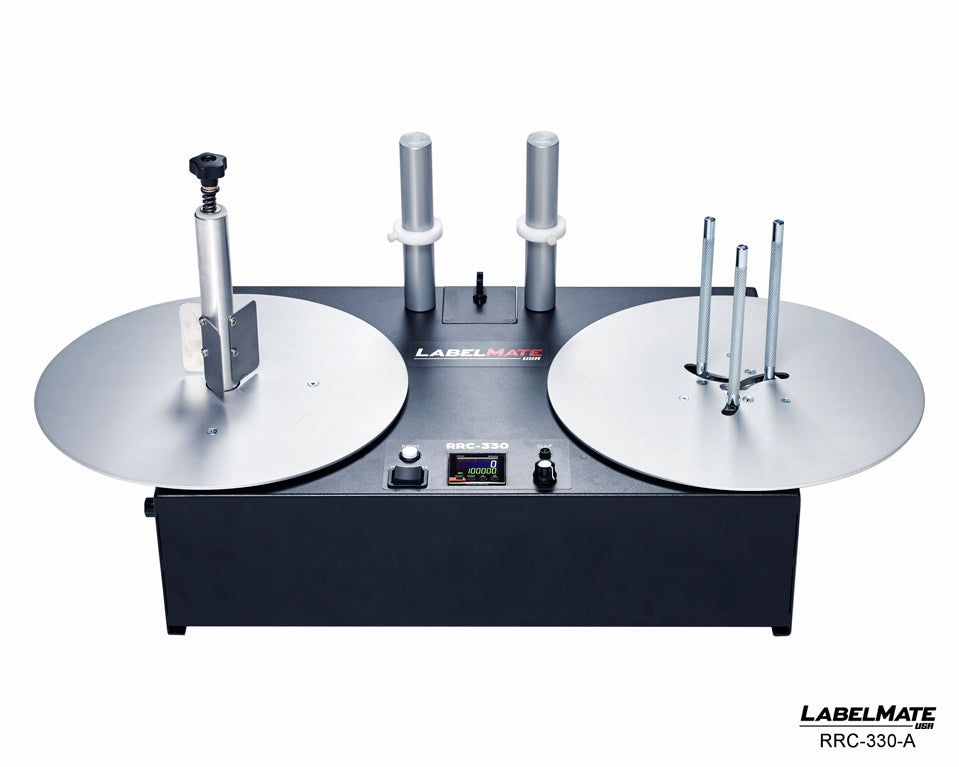

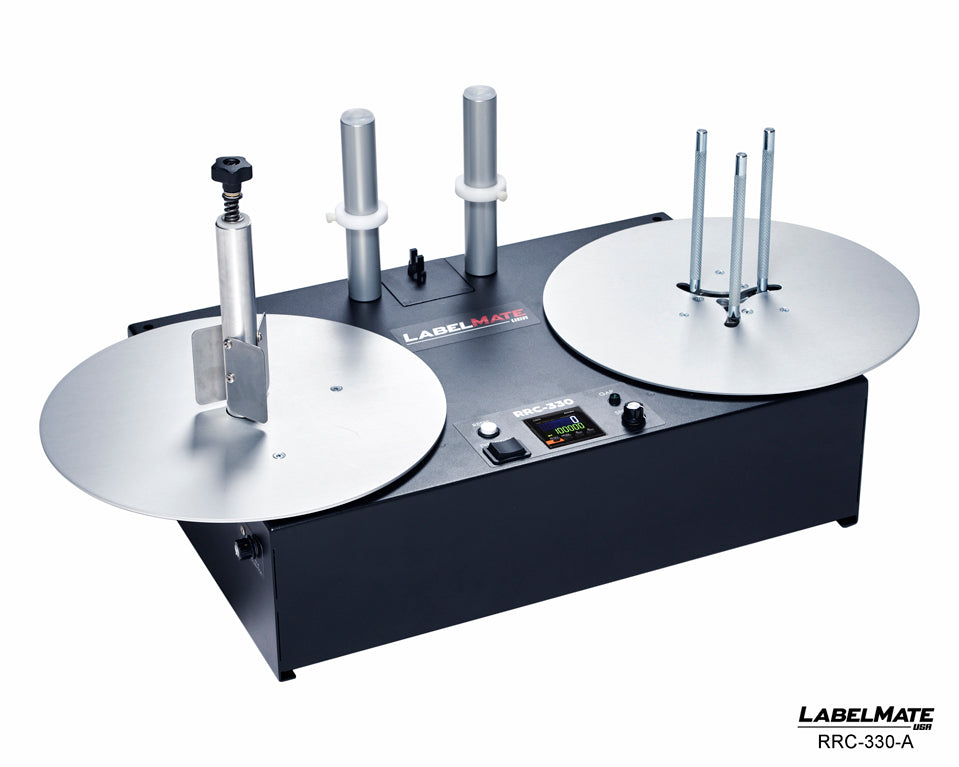

RRC-330-A
RRC-330-A
RRC-330-A
RRC-330-A

RRC-330-A

  • $2,795.00
    Unit price per
Shipping calculated at checkout.

Item #: 80-238-0005

Description

Reel-to-Reel Counters provide the ideal off-line solution for counting rolls of labels. With these machines you can verify the number of labels on a roll, divide large rolls into smaller rolls using the preset count/stop feature, and re-tension loose rolls. Available options can increase the maximum media width capacity of the Counters, as well as enable them to count labels without gaps in between.

Optional Add-Ons (if desired):

EXG-RR-6 Exterior Roll Guide Set.

RRC-ENC Encoder for counting gapless (continuous) or clear material.

Technical

Label Type: Opaque
Max. Label Width: 6" (152mm)
Max. Roll Diameter: 13" (330mm)
Core Diameter: 3" (76mm) Unwind. 1" – 4" Adjustable (25 – 100mm) Rewind.
Counter: Can stop at a preset count if desired.
Roll Guide: All New optional EXG-RR-6 Exterior Roll Guide Set (purchased separately)
Indexing: All New indexing setting to pause between labels if desired
Speed Control: Variable speed control
Tension Control: Adjustable web-tension control
Warranty: 3-Year Parts and Labor Limited Warranty

Shipping

Size: 40"x16"x18" (1016x407x458mm)
Weight: 40 lbs. (18.14 kg)
