Description

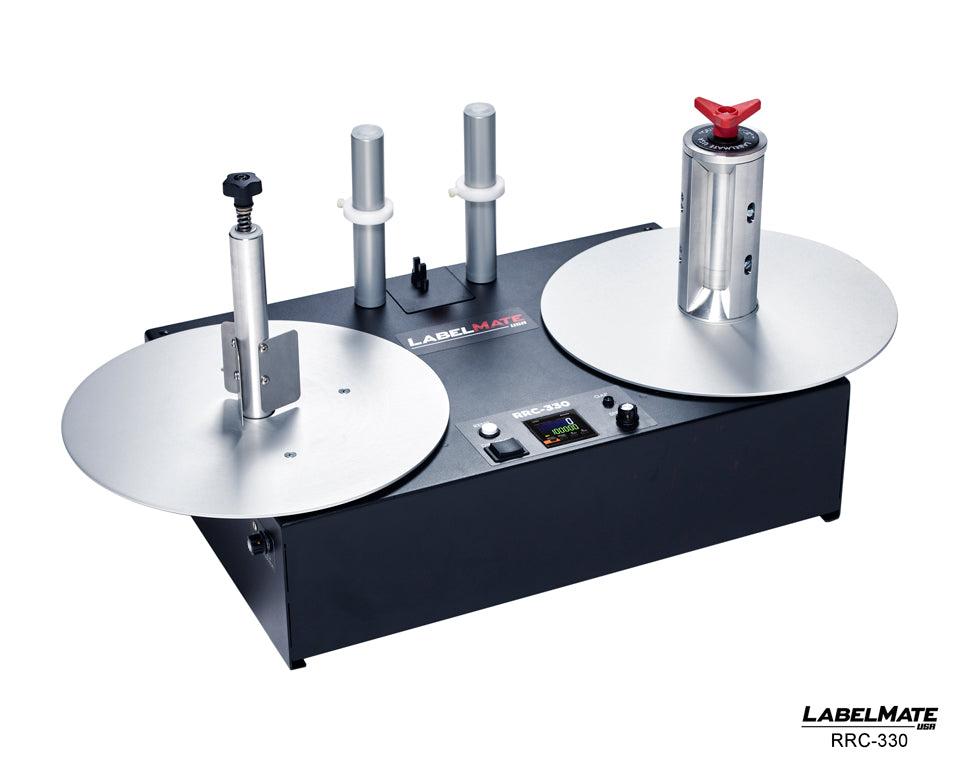

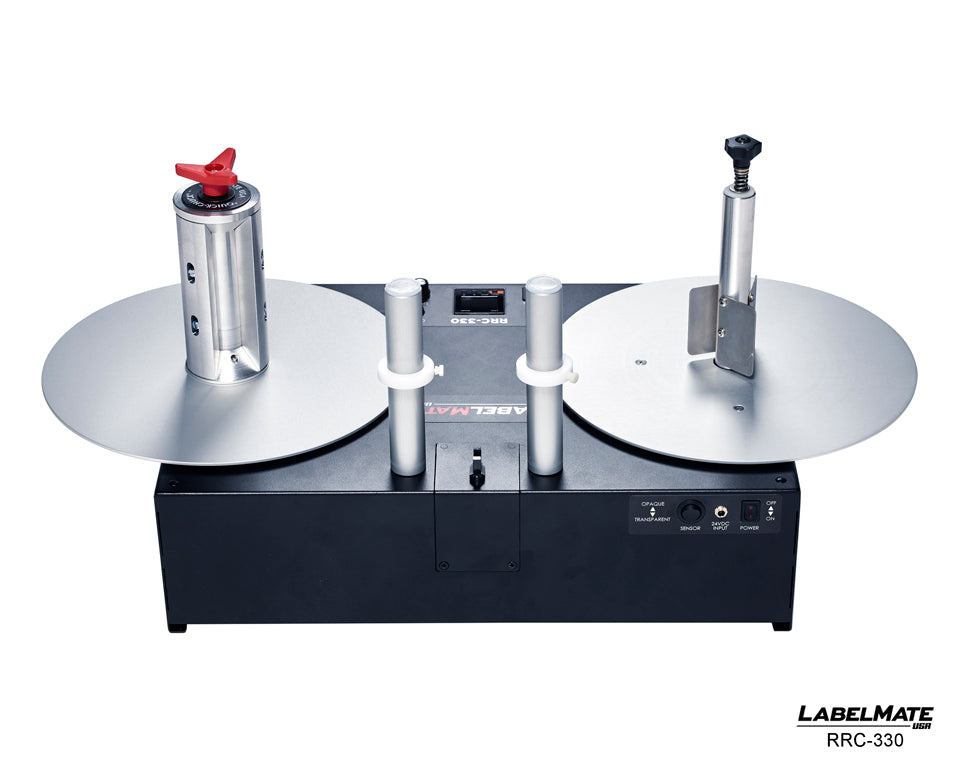

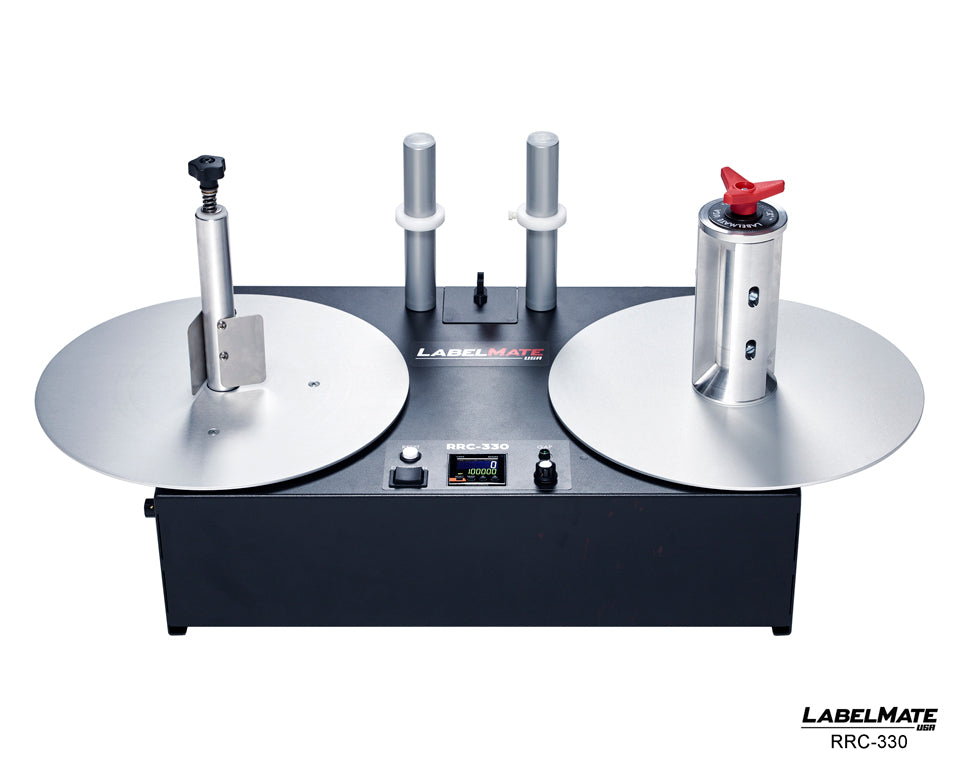

Reel-to-Reel Counters provide the ideal off-line solution for counting rolls of labels. With these machines you can verify the number of labels on a roll, divide large rolls into smaller rolls using the preset count/stop feature, and re-tension loose rolls. Available options can increase the maximum media width capacity of the Counters, as well as enable them to count labels without gaps in between.
Optional Add-Ons (if desired):
EXG-RR-6 Exterior Roll Guide Set.
RRC-ENC Encoder for counting gapless (continuous) or clear material.
Technical
| Label Type: | Opaque |
| Max. Label Width: | 6" (152mm) |
| Max. Roll Diameter: | 13" (330mm) |
| Core Diameter: | 3" (76mm) Unwind. 3" (76mm) Rewind. |
| Counter: | Can stop at a preset count if desired. |

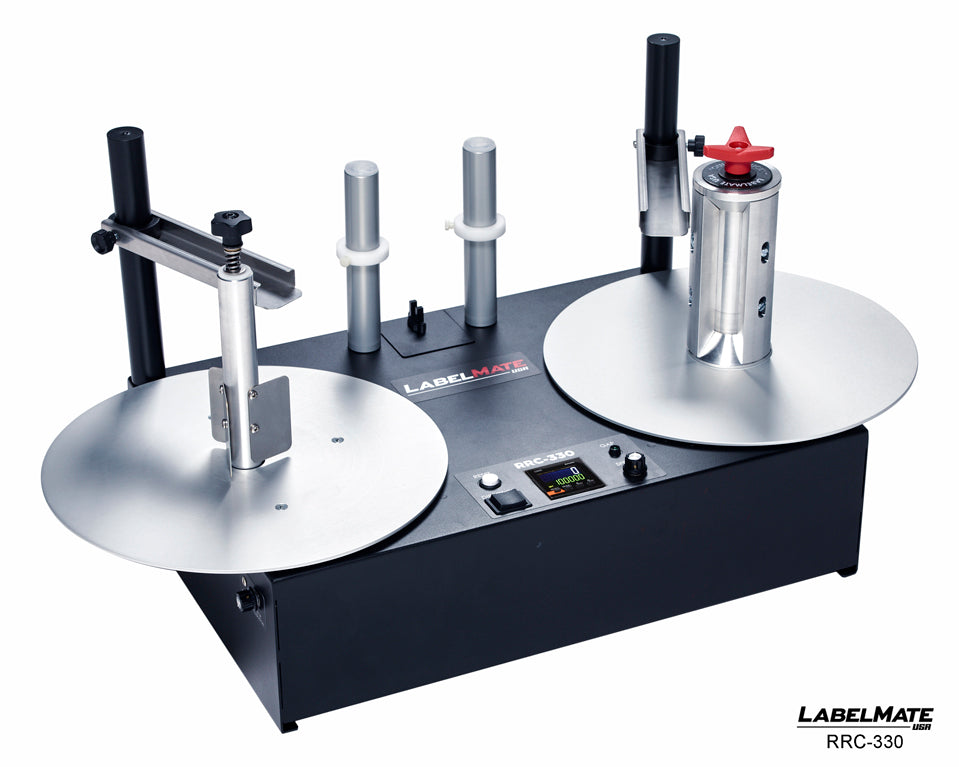

| Roll Guide: | All New optional EXG-RR-6 Exterior Roll Guide Set (purchased separately) |
| Indexing: | All New indexing setting to pause between labels if desired |
| Speed Control: | Variable speed control |
| Tension Control: | Adjustable web-tension control |
| Warranty: | 3-Year Parts and Labor Limited Warranty |
Shipping
| Size: | 40"x16"x18" (1016x407x458mm) |
| Weight: | 40 lbs. (18.14 kg) |
