Item #: 80-203-0083

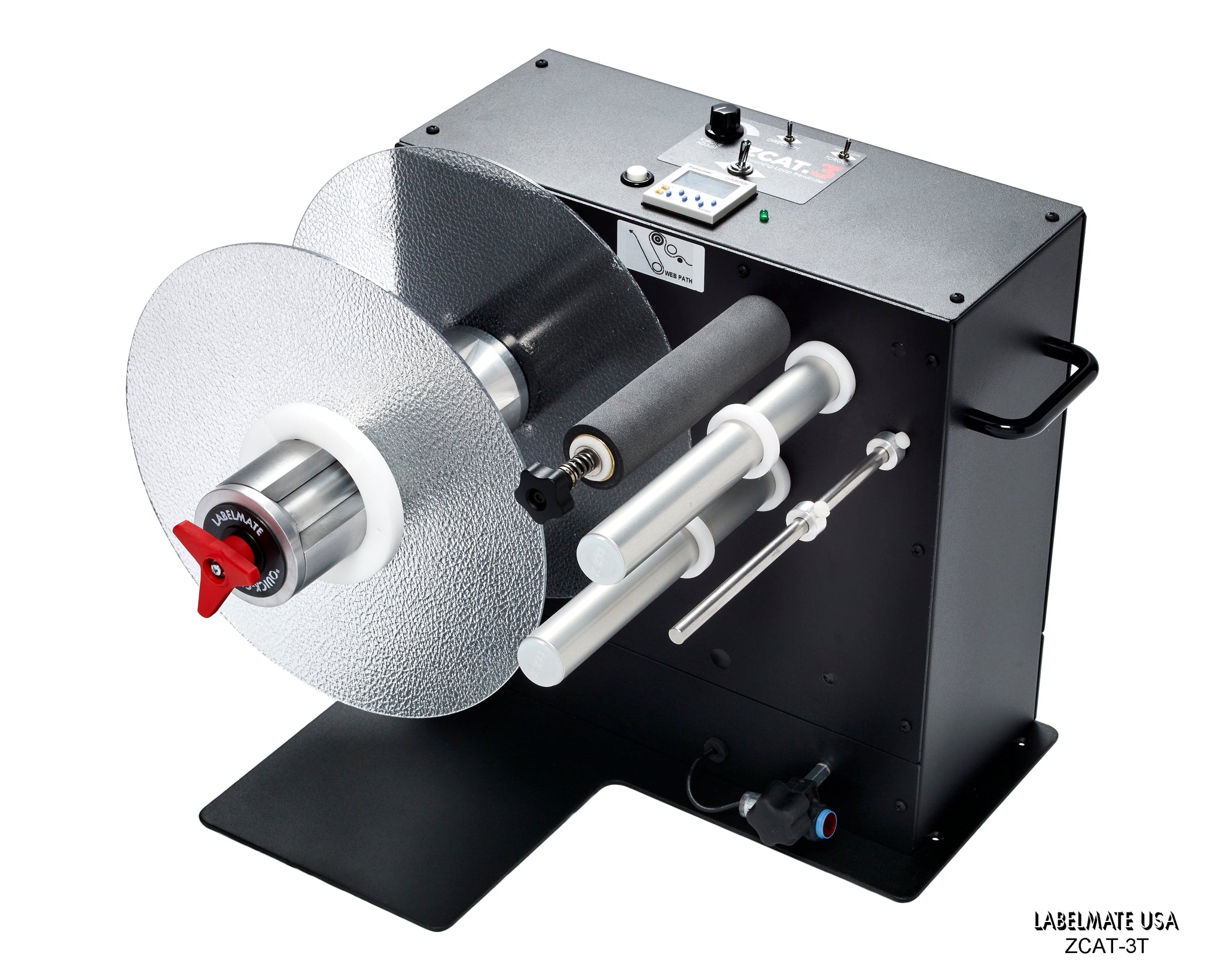

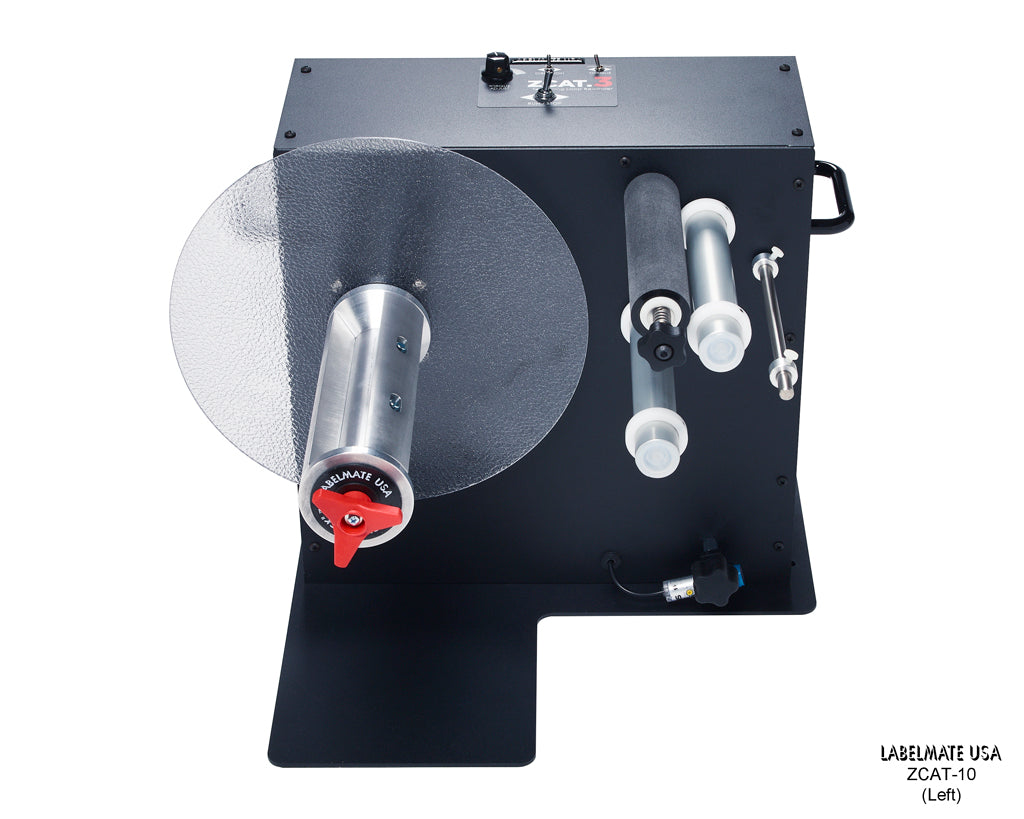

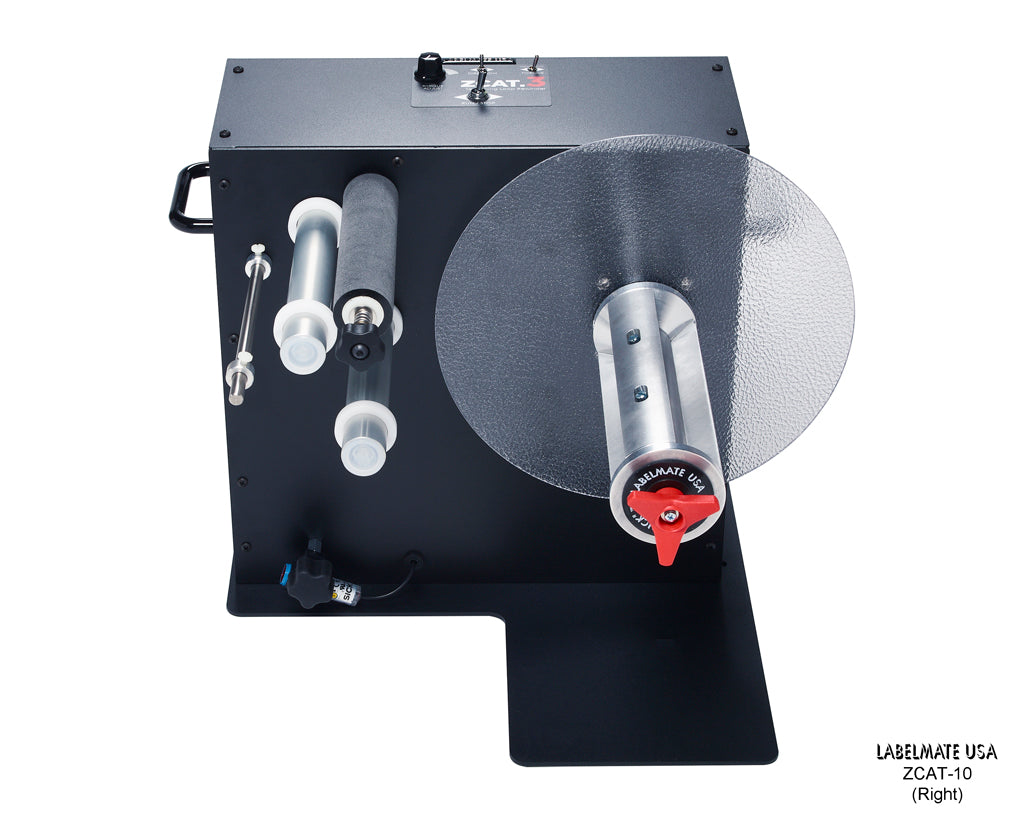

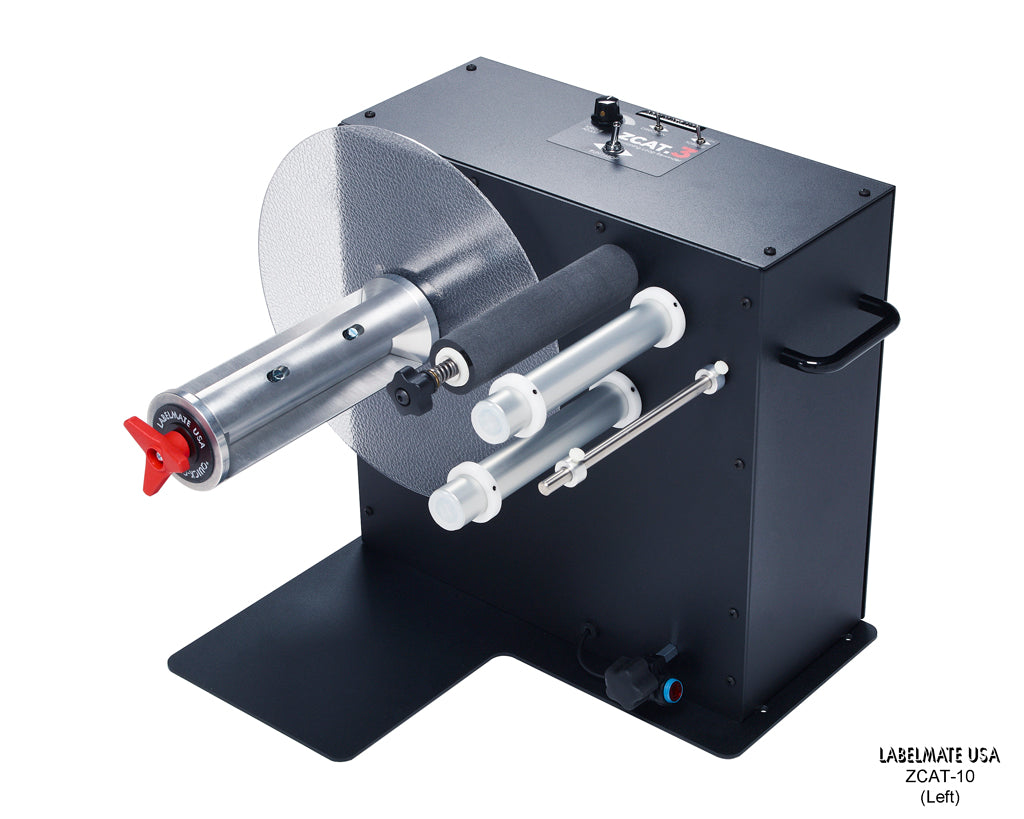

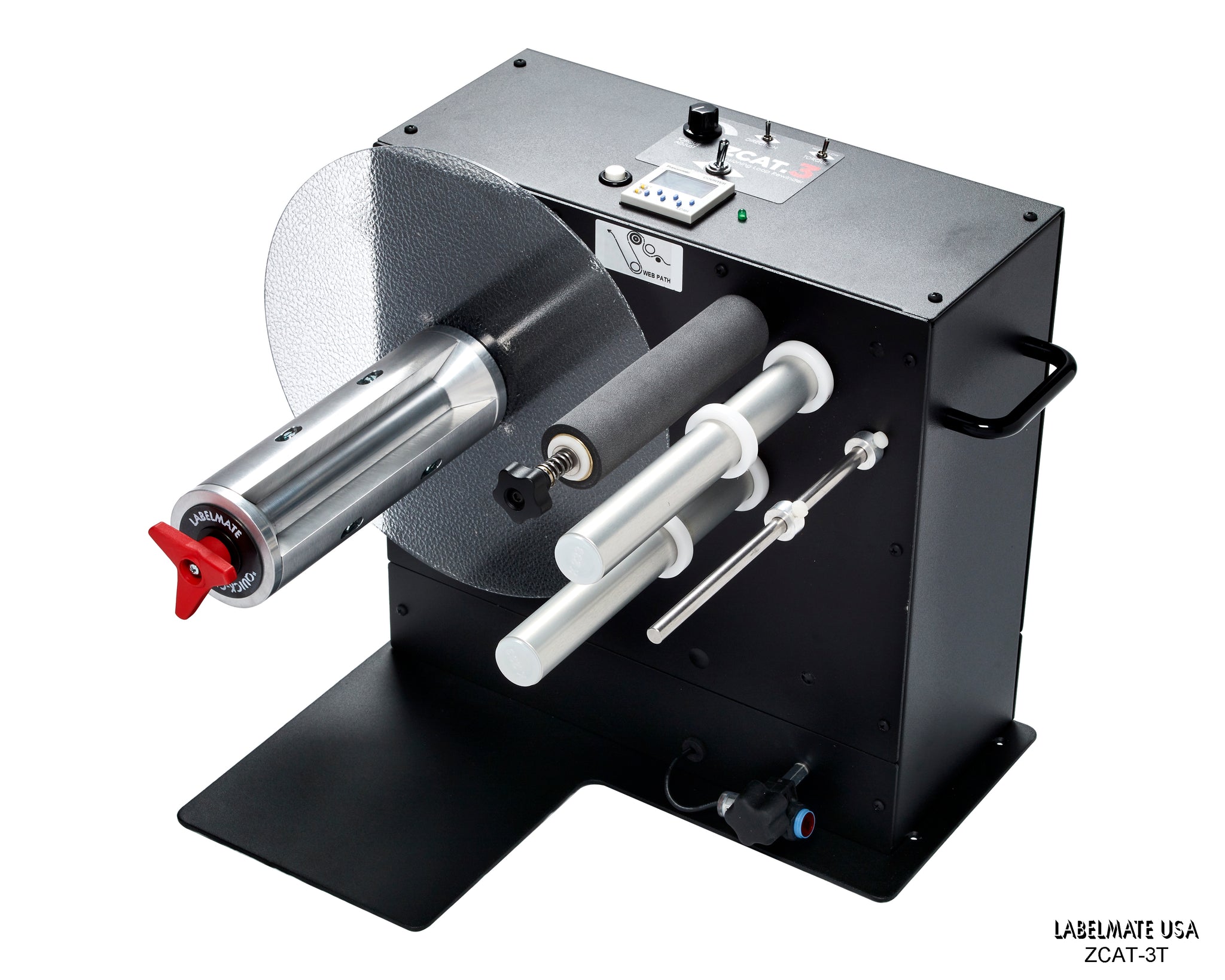

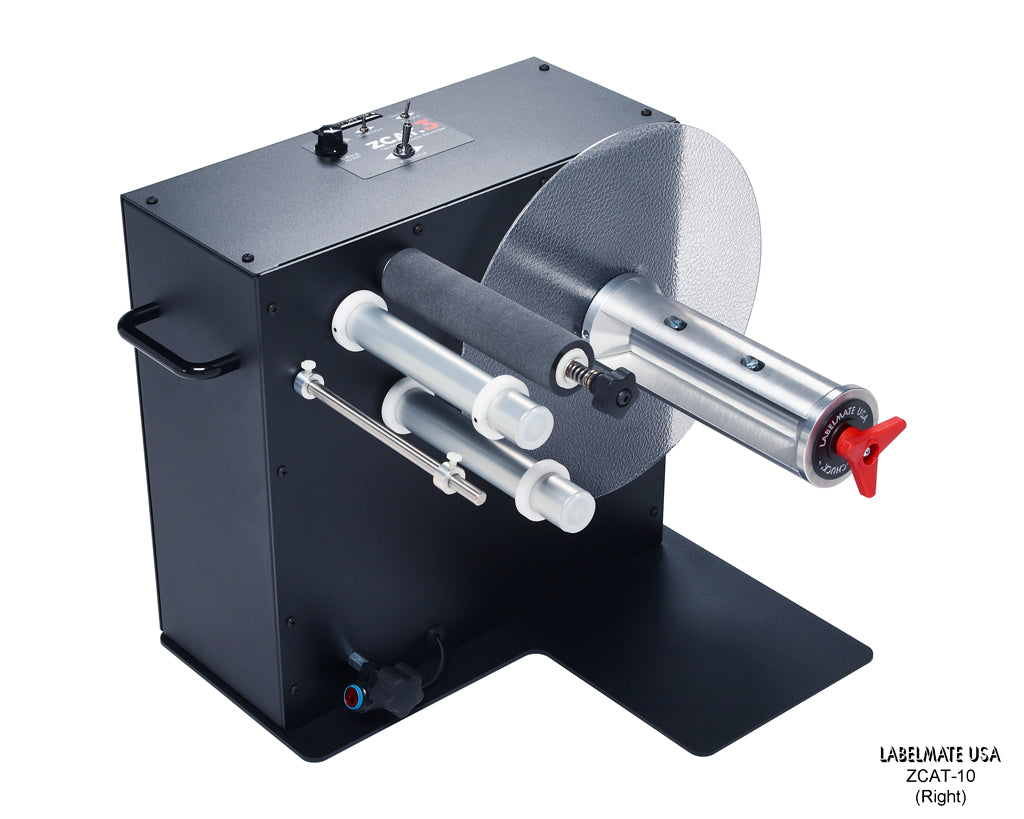

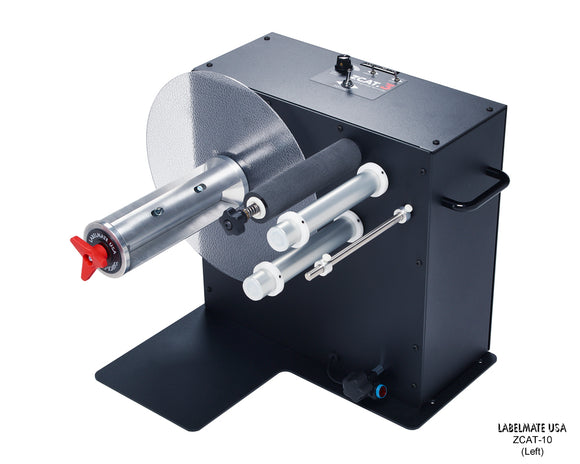

Rewinder with Adjustable Tension Control. 6.5"x12".
- Max. Roll Diameter: 12" (305mm)
- Max. Media Width: 10.5" (266mm)
- Core Diameter: 3" (76mm)
- Position: Left Side of Printer or Right Side of Printer
- Core Holder: Mechanical Chuck
- Full 5-Year Parts and Labor Limited Warranty

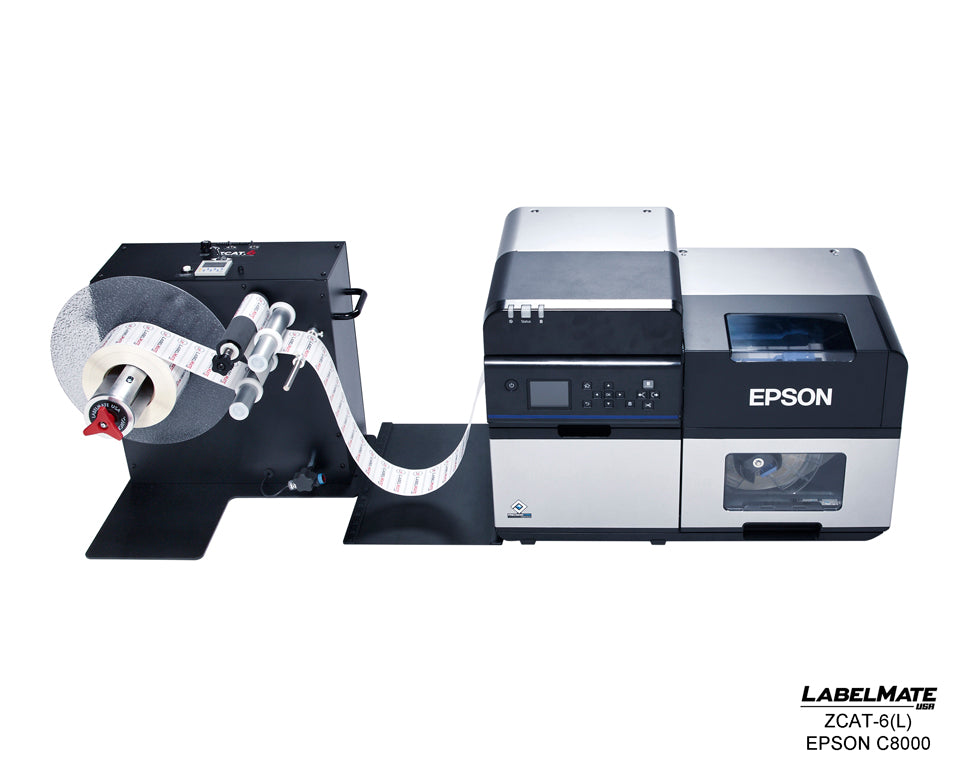

ZCAT-3 Tensioning Rewinders are the ideal solution for sensitive inkjet printers that backfeed and/or that don’t like being tugged-on by a Rewinder. With the ZCAT-3, the printer doesn’t even know that the Rewinder is there. A free-hanging loop of material forms between the printer and the Rewinder and an optical sensor on the Rewinder starts and stops the rewind action in conjunction with the printer. Fully adjustable tension control on the Rewinder assures that the finish roll is tight and the roll edge flush.
