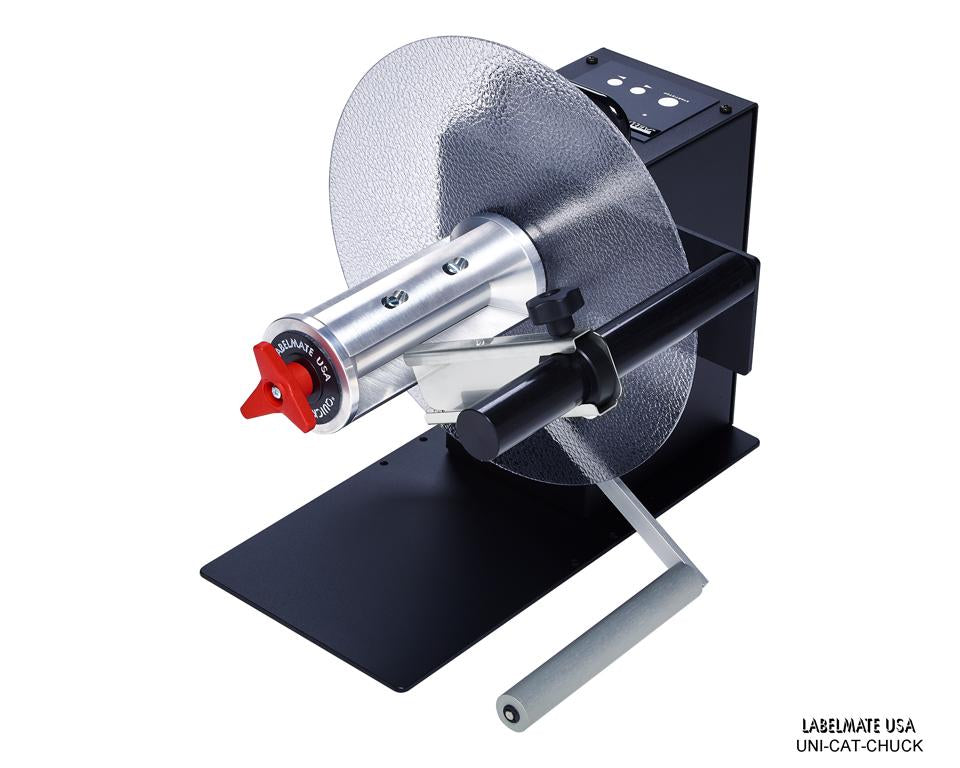

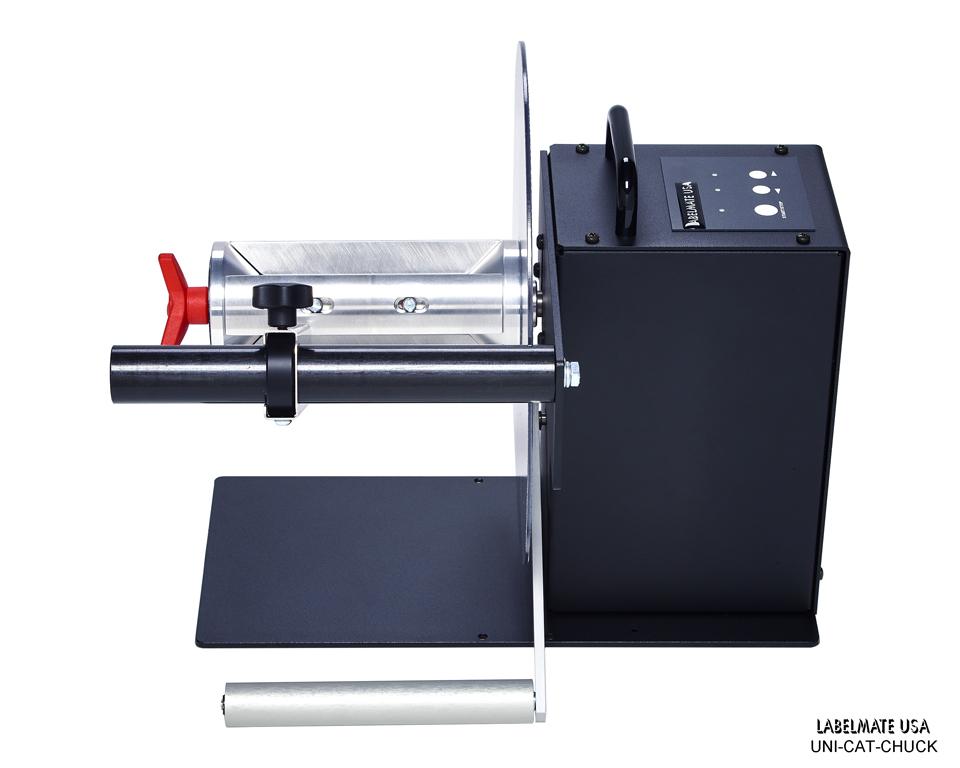

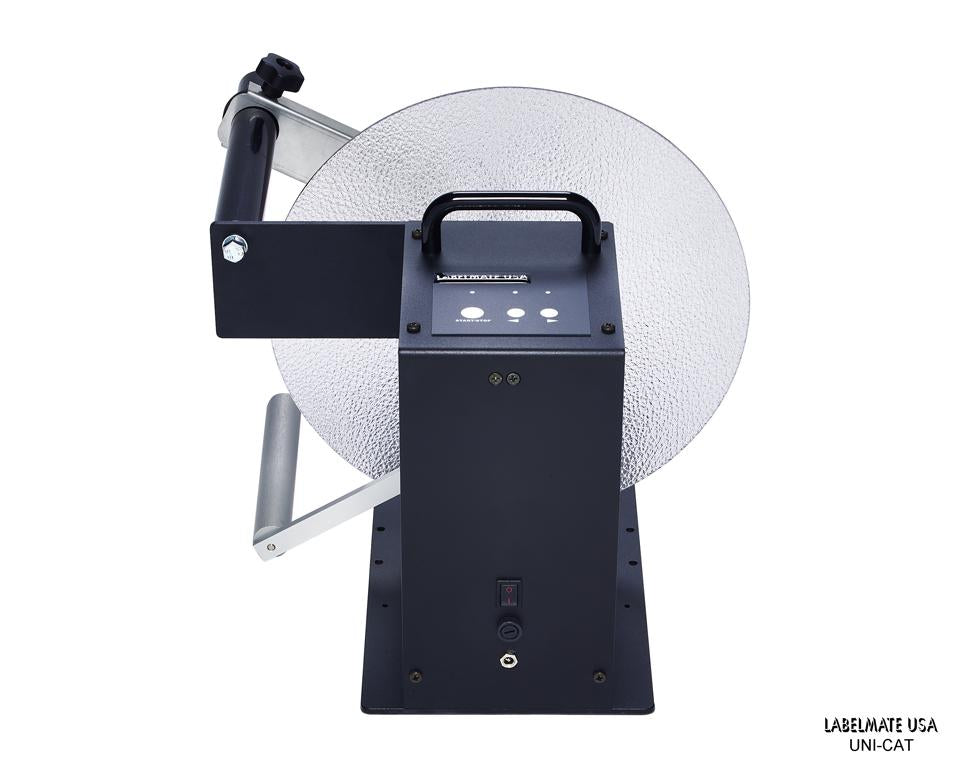

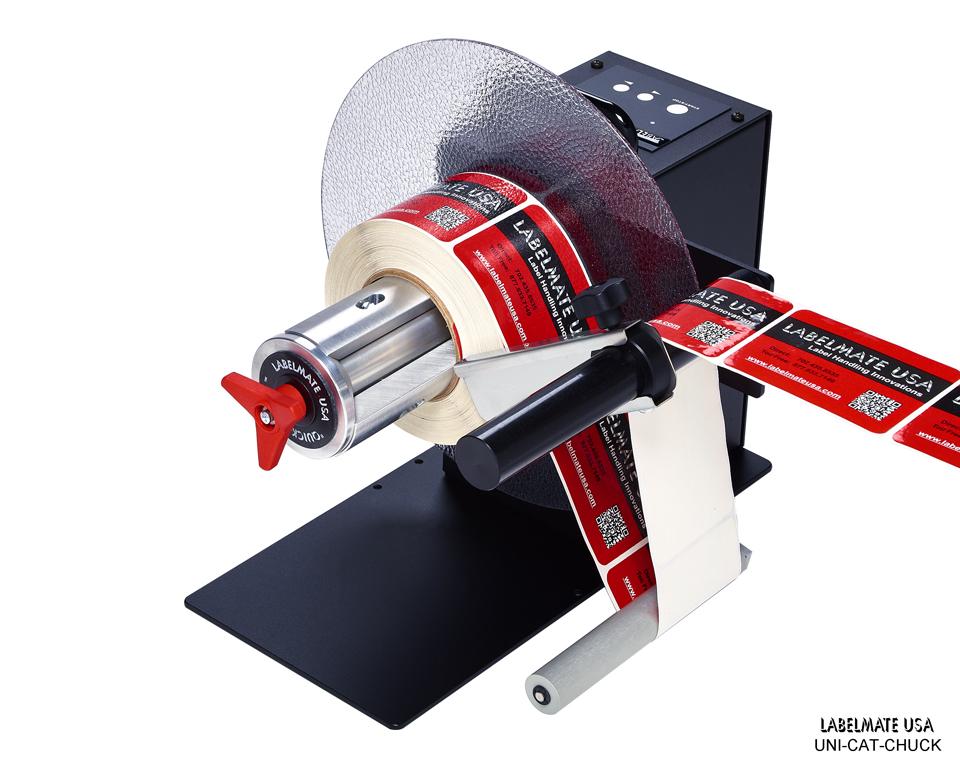

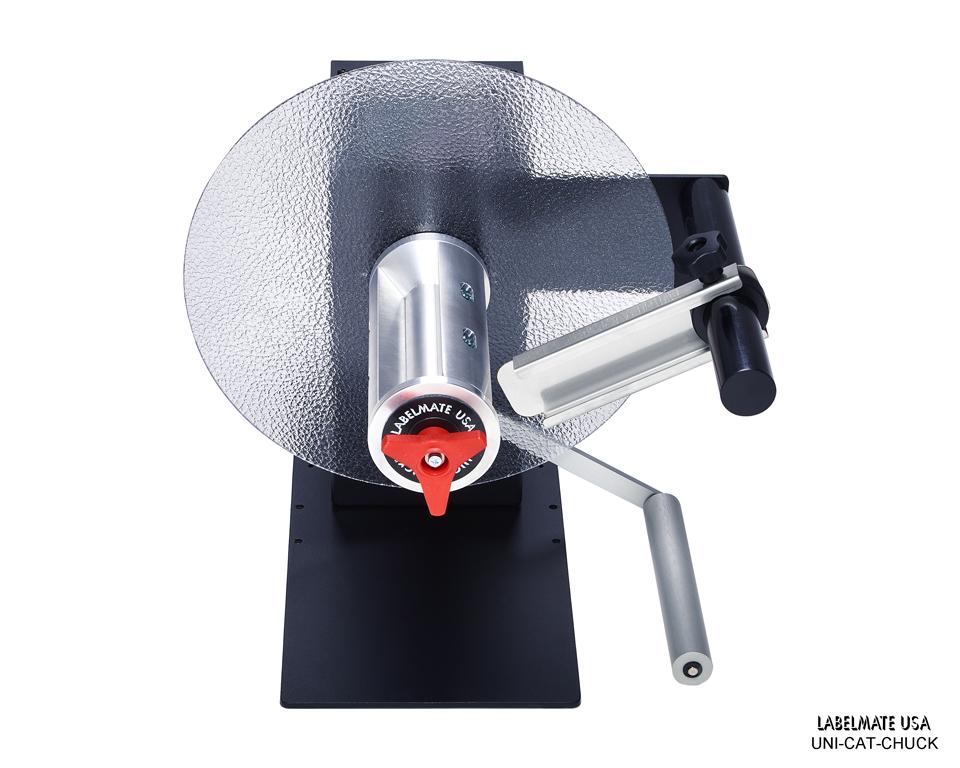

UNI-CAT-CHUCK (LIKE NEW)

  • $780.00
    Unit price per
Shipping calculated at checkout.

Item #: 80-203-0083

Description

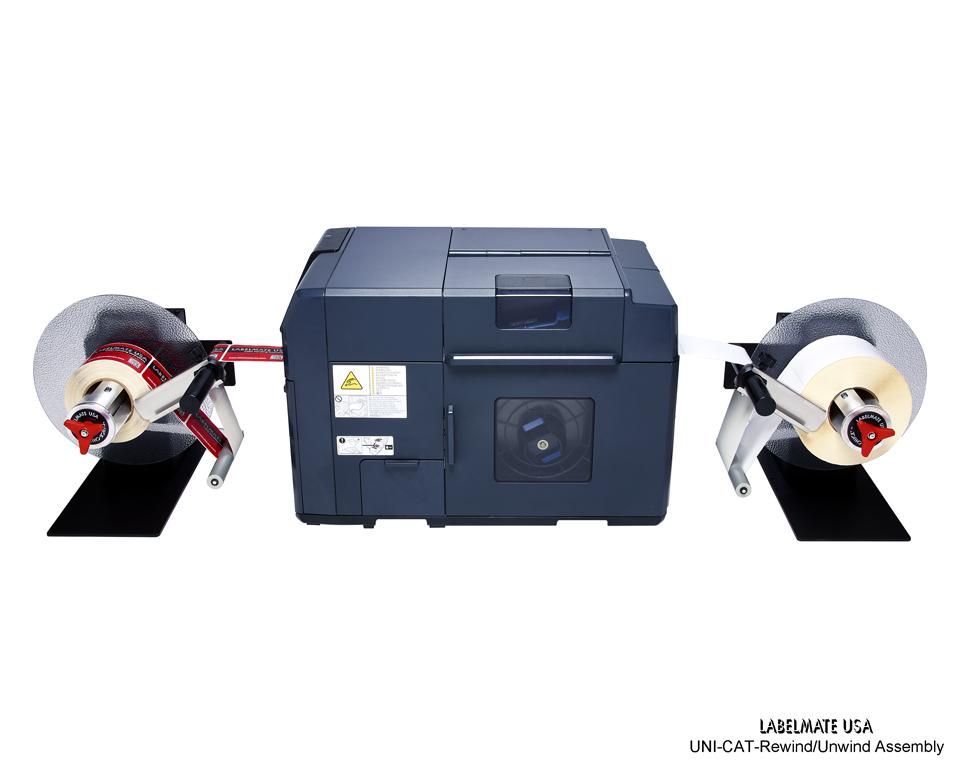

The new UNI-CAT Rewinder/Unwinder is the most intelligent and universal Winder inthe LABELMATE product line, and can be used as both a Rewinder and an Unwinder. The UNI-CAT synchronizes with the printer and automatically and imperceptibly changes direction with the printer. This makes the UNI-CAT the ideal companion for printers that back-feed or that are tension-sensitive. In addition, the UNI-CAT is self-teaching and automatically matches the speed of theprinter without the need of any operator intervention. The UNI-CAT also senses when the end of roll is reached and automatically stops rewinding. The rugged, heavy-gauge steel construction of the UNI-CAT enables it to be simply set in place in the desired position. Special anti-slip feet prevent the unit from moving. With various core sizes, label widths, roll diameters and options to choose from, there is a UNI-CAT Winder to fit virtually any job you may have.

Technical

Max. Roll Diameter: 12” (305mm)
Core Diameter: 3” (76mm)
Core Holder: Mechanical Chuck
Max. Media Width: 6.5” (165mm)
Smart Winding: Bi-directional “smart” Rewinder/Unwinder – Synchronized with Printer
Speed Control: Automatic responsive speed control – Synchronized with Printer
Speed: Up to 50 inches/sec (125cm/sec)
Rewind Tension Control: Automatic stop at end of roll
Warranty: Full 5-Year Parts and Labor Limited Warranty

Shipping

Size: 20”x20”x11” (508x508x280mm)
Weight: 31 lbs. (14 kg)
