SLIT-100-DELUXE

$3,595.00
Unit price per

Shipping calculated at checkout.

Item #: 80-267-0001

Description

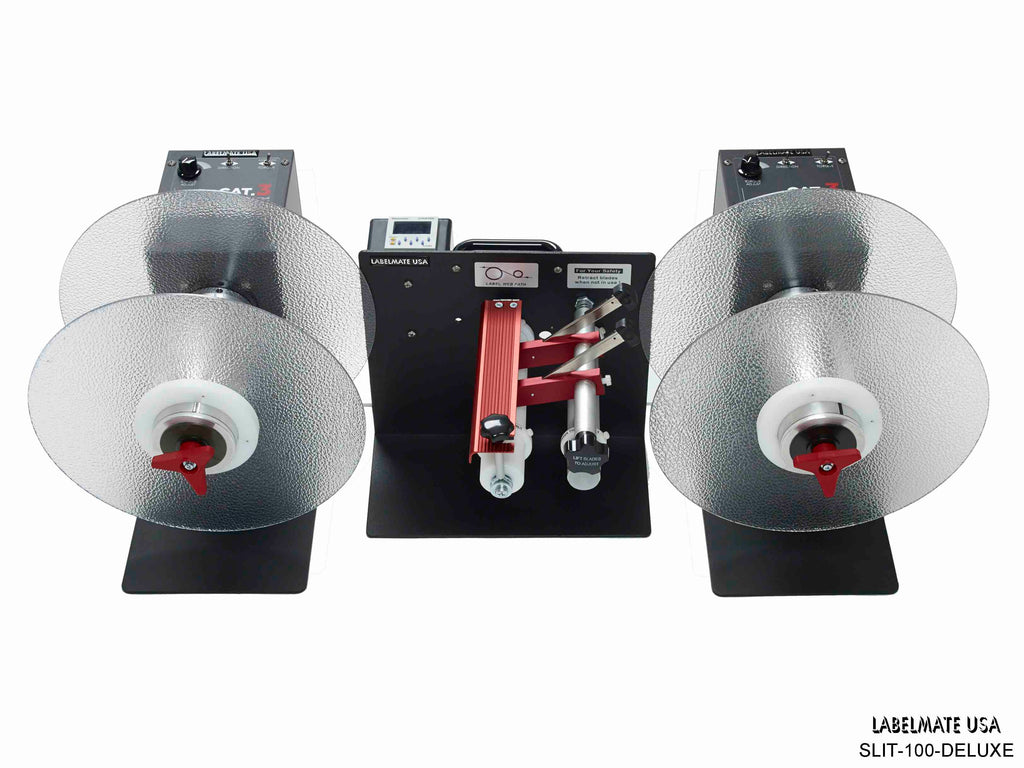

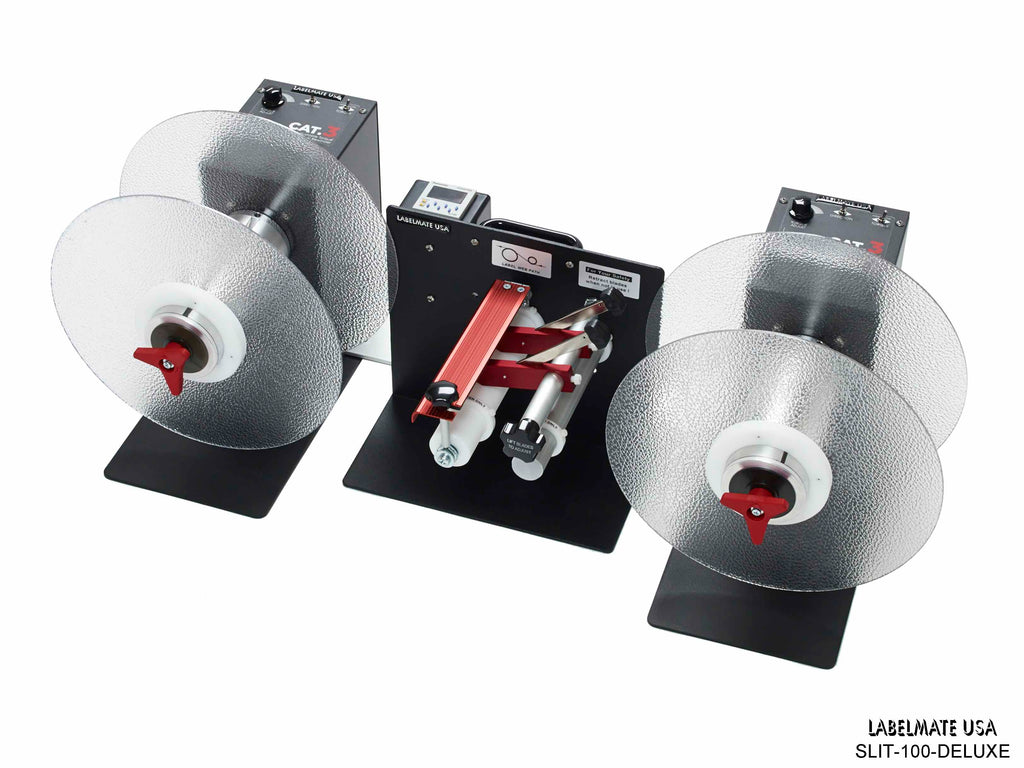

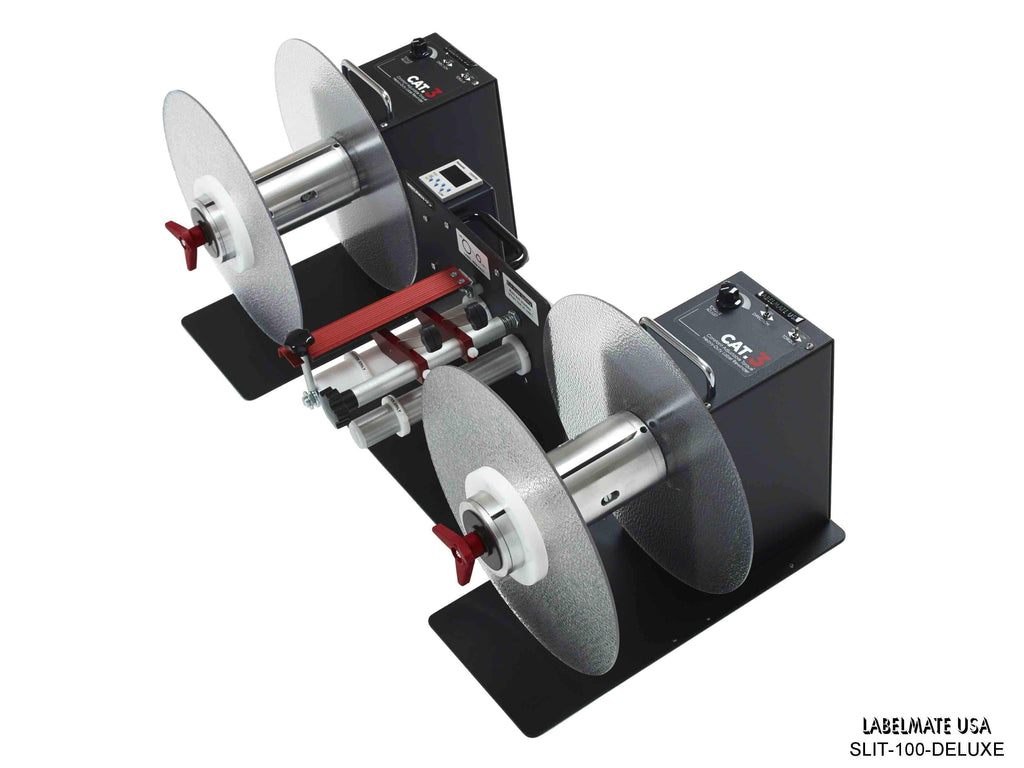

Complete off-line Slitting Packages provide an excellent solution for slitting multi-up rows of labels from a single roll into multiple individual finish-rolls. Separator Disks are placed between the finish-rolls as they are rewound after being slit. Bi-directional CAT-3 Rewinders on either side of the Slitting Packages afford full tension control. Add up to two (2) additional Blades!

Note: PCS-1 Counter Option shown in photos is not included, and is purchased separately if desired (see Related Products section below).

Technical

Number of Blades:	2
Max. Media Width:	6" (153mm)
Min. Media Width:	0.5" (12.7mm)
Max. Roll Diameter:	12" (305mm)
Core Diameter:	3" (76mm)
Separator Plates:	Includes two (2) SP-76-220PL Plastic Disks to separate finish-rolls
Alignment System:	Includes Aluminum Locking Bar to maintain system alignment
Rewinder Warranty:	5-Year Parts and Labor Limited Warranty
Slitter Warranty:	3-Year Parts and Labor Limited Warranty

Shipping

Carton 1
Size:	20"x20"x11" (508x508x280mm)
Weight:	29 lbs. (13.15 kg)
Carton 2
Size:	20"x20"x11" (508x508x280mm)
Weight:	29 lbs. (13.15 kg)
Carton 3
Size:	16"x16"x12" (406x406x305mm)
Weight:	15 lbs. (6.8 kg)

Downloads

User Manual

Data Sheet
