Item #: 80-203-0026

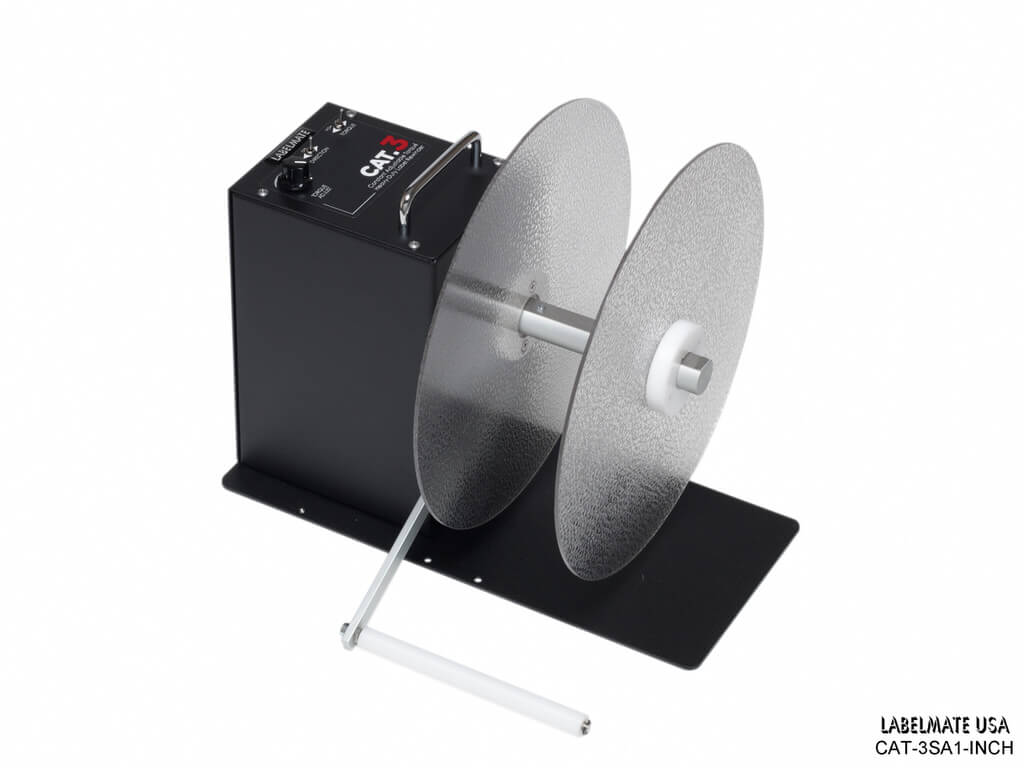

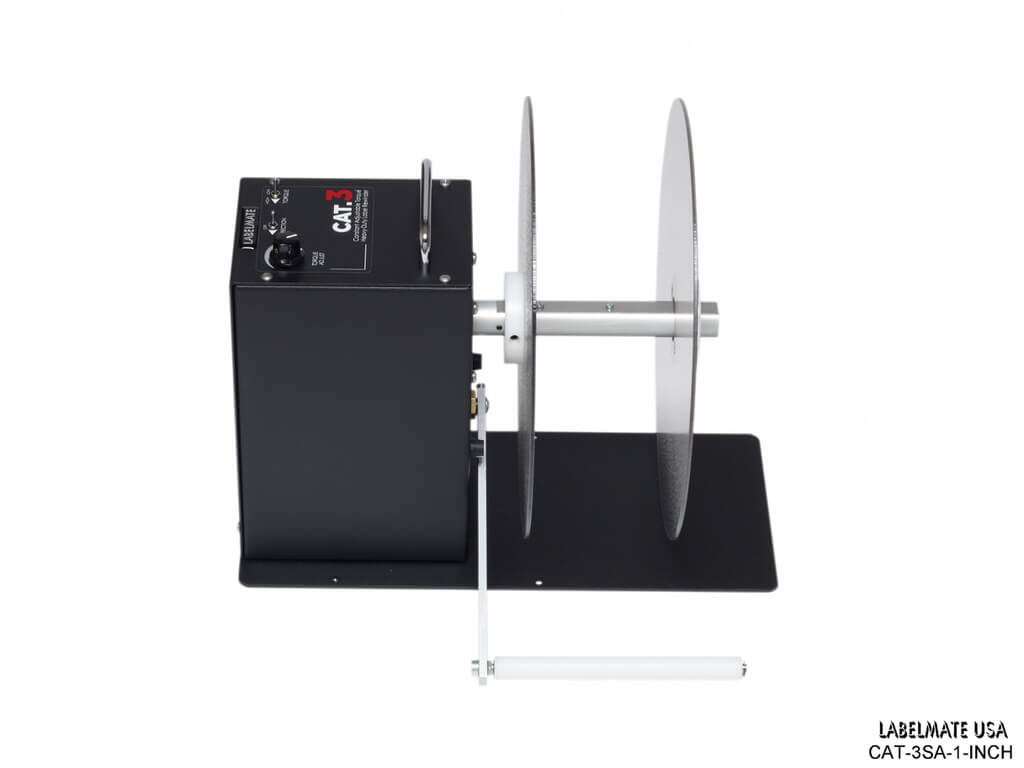

Standard Heavy-Duty Rewinder with Sensor Arm and 1" core holder, for media up to 6.5" wide, and roll diameters up to 12".

  • Max. Roll Diameter: 12" (305mm)
  • Core Diameter: 1" (25mm)
  • Core Holder: Fin-Style
  • Max. Media Width: 6.5" (165mm)
  • Full 5-Year Parts and Labor Limited Warranty

Description

CAT-3 Rewinders with a Sensor Arm are the ideal solution for rewinding from a printer. These universal rewinders provide a "set it and forget it" solution that starts and stops automatically with the printer. Additionally, these Rewinders are equipped with full speed and torque control, are bi-directional, and are virtually silent in operation.

Videos

Shipping Information

  • Size: 20"×20"×11" (508x508x279mm)
  • Weight: 25 lbs. (11.34-kg)
