C1.5-170

C1.5-170

  • $295.00
    Unit price per
Shipping calculated at checkout.

Item #: 80-197-0002

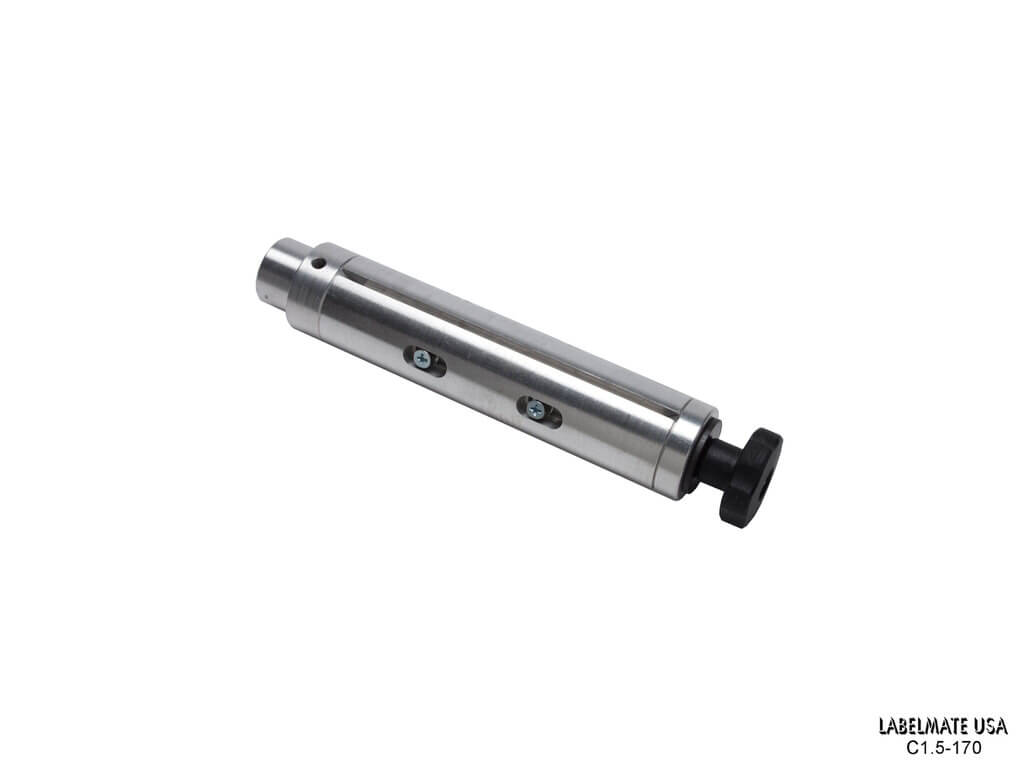

Adjustable Core Holder for CAT Rewinders and UCAT Unwinders.

  • Core Diameter: 1.5" (38mm)
  • Max. Media Width: 6.7” (170mm)
  • Mounting: Setscrew, press fit
  • Mounting Hole Diameter: 0.626” (15.9mm)
  • Mounting Hole Depth: 1.33” (34mm)
  • Composition: Steel and Anodized Aluminum
  • Warranty: 3 Year Parts and Labor Limited Warranty

Description

Adjustable Core Holder for 1” - 1.5” diameter cores (38mm). Interchangeable with QUICK-CHUCK Core-Holders and STANDARD Shafts. Fits precisely on a 0.625” (15.875mm) diameter motor shaft. A setscrew affixes the Core-Holder firmly onto the flat of the motor shaft.

APG-CAT

Outer Guide Assembly to maintain flush roll edge purchased separately.


Videos

Shipping Information

  • Size: 14”x6”x6” (355x152x152mm)
  • Weight: 3 lbs. (1.36 kg)
