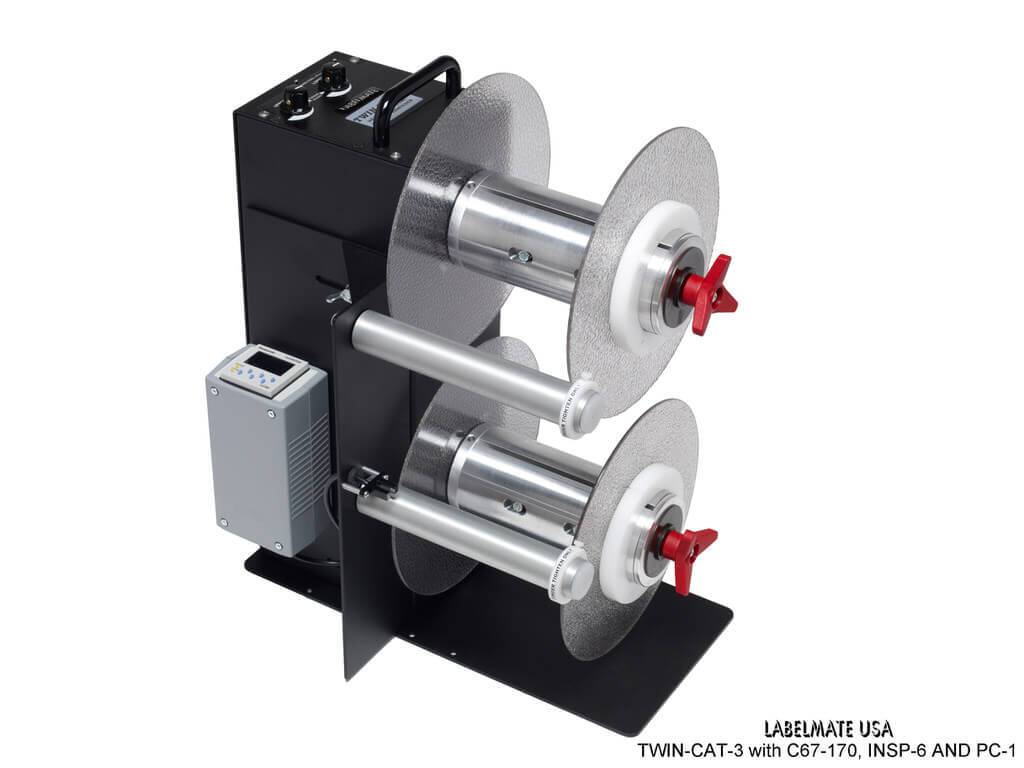

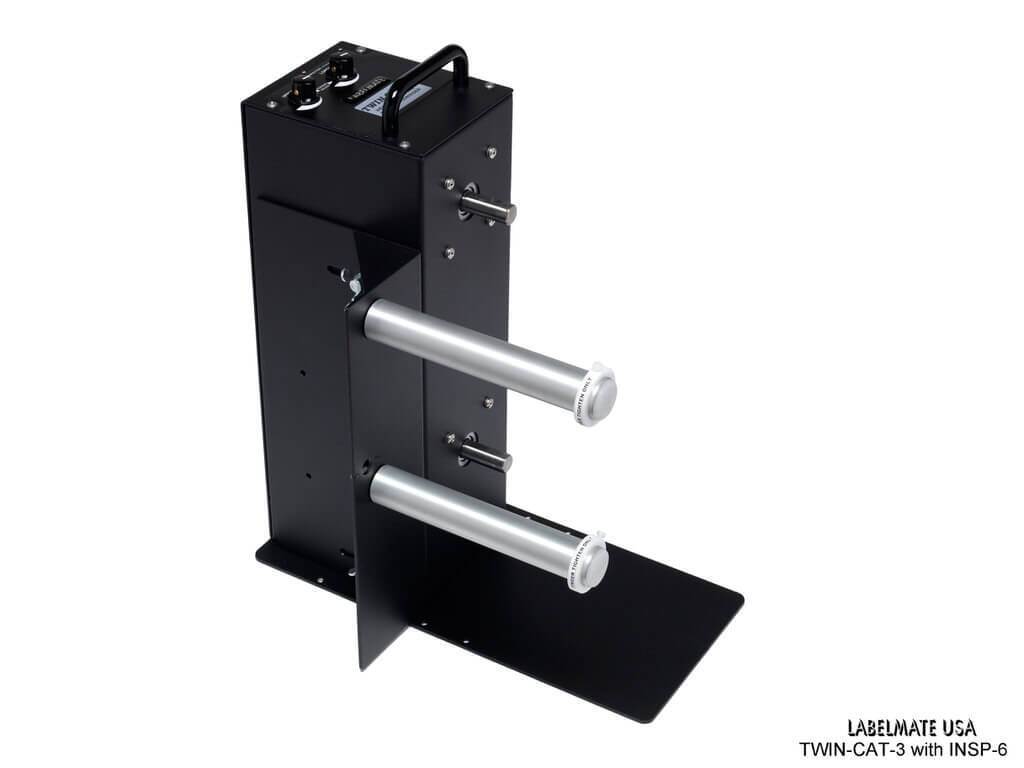

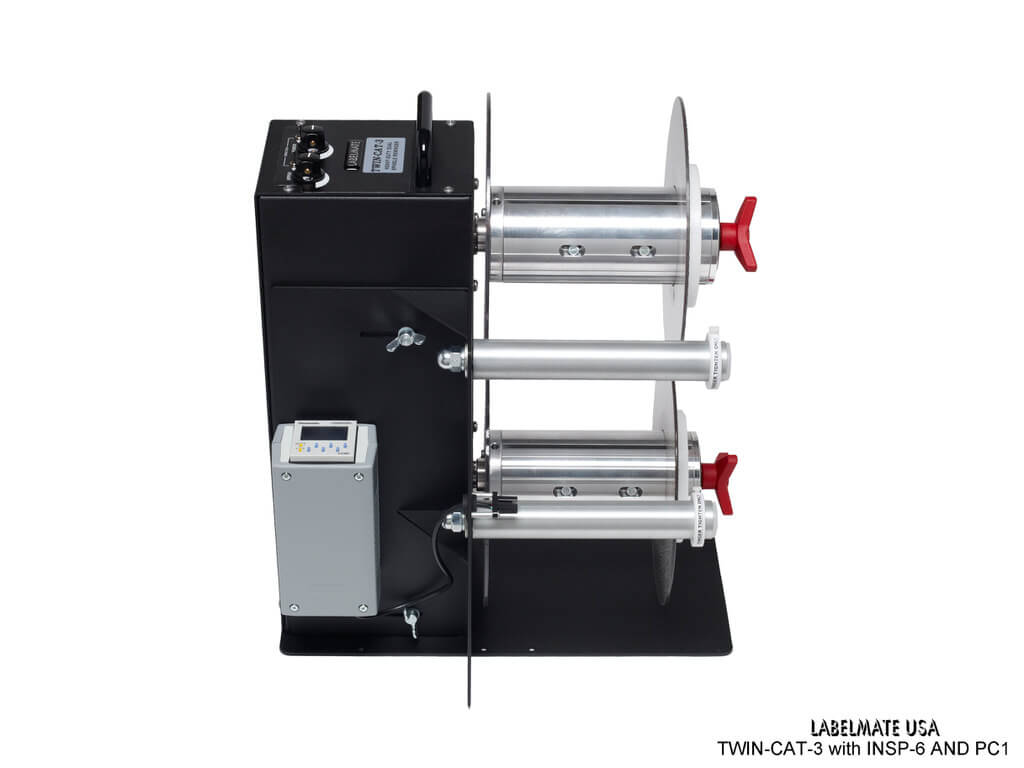

TWIN-CAT-3 with 2x TC-C76-170 (LIKE NEW)
TWIN-CAT-3 with 2x TC-C76-170 (LIKE NEW)
TWIN-CAT-3 with 2x TC-C76-170 (LIKE NEW)

TWIN-CAT-3 with 2x TC-C76-170 (LIKE NEW)

  • $1,550.25
    Unit price per
Shipping calculated at checkout.

Item #: 80-203-0043-170-SD

Description

PRODUCT PHOTO IS FOR REFERENCE ONLY.

2X TC-C76-170 Quick-Chuck: 3" x 6.7" are included. THIS LIKE NEW ITEM DOES NOT INCLUDE PCT-1 Counter or INSP-6 Inspection Station.

Vertical Rewind Station with independent, bi-directional rewind / unwind control. Desired core holders purchased separately.

The TWIN-CAT-3 Vertical Rewind Station is a versatile solution that can be used for rewinding, unwinding, re-tensioning, counting, reorienting, and inspecting rolls of labels and other material. The TWIN-CAT-3 can also be used in slitting and waste matrix removal applications. Core-holders can be mixed-and-matched to fit the required application. Other options (Inspection Fixture, Counter, Footswitch) added to the unit as well if desired.

Additional Core-Holders and desired options can be purchased separately (see "Related Products" below).

Technical

Core-Holders: TWO TC-C76-170 Quick-Chuck 3" x 6.7" are included. You can mix and match desired core-holders. Select Core-Holders (two required) and desired options in "Related Products" section below.
Max. Media Width: 10.5" (266mm)
Max. Roll Diameter: 8" (203mm)
Core Diameter: Varies with core-holders selected
Warranty: Full 5-Year Parts and Labor Limited Warranty

Shipping

Size: 26”x16”x12” (660.4x406.4x305mm)
Weight: 32 lbs. (14.5 kg)
