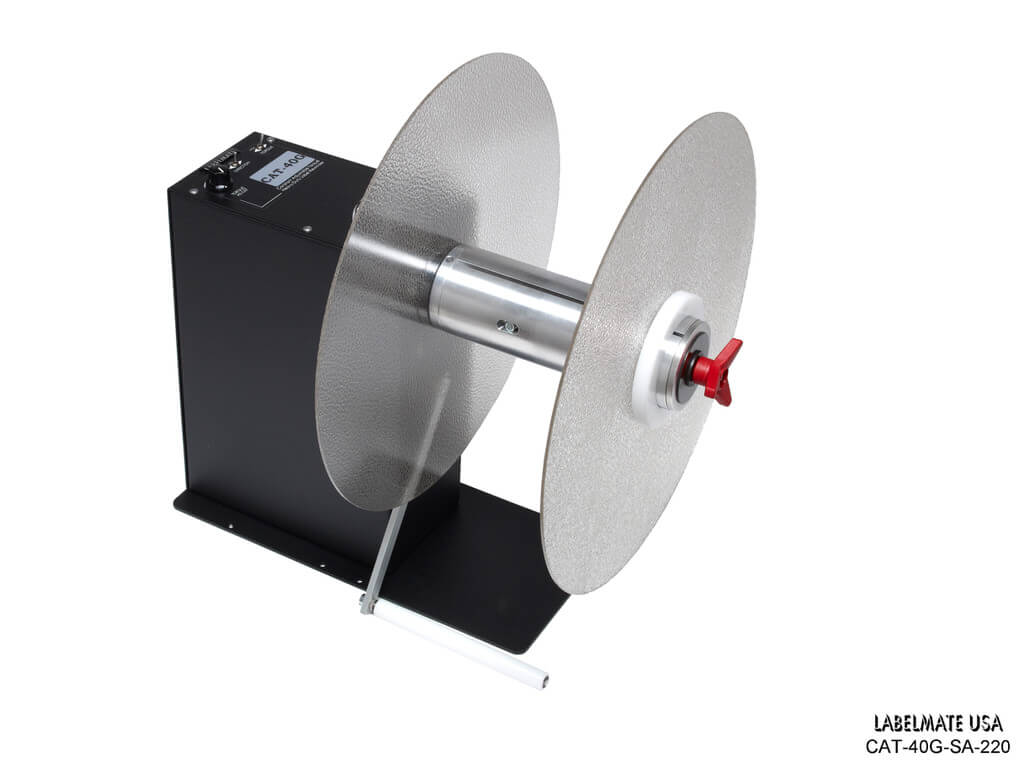

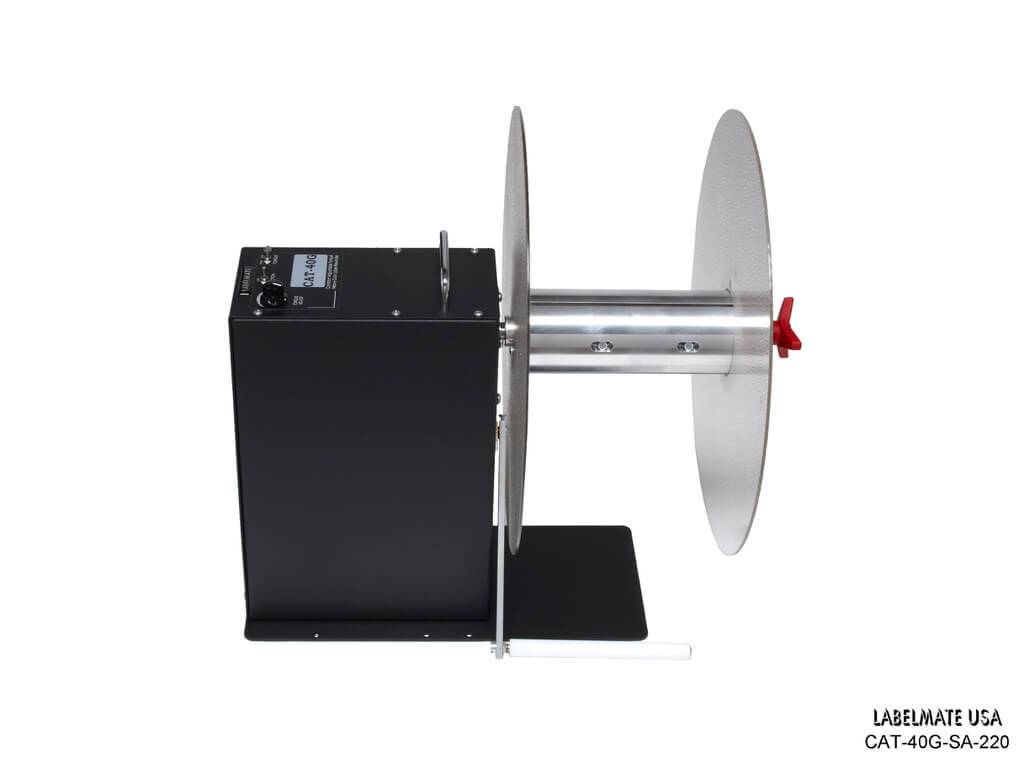

CAT-40G-SA-220 (LIKE NEW)
Shipping calculated at checkout.
Item #: 80-203-0042-SD
High Torque Rewinder with Sensor Arm, for media up to 8.5" wide, and roll diameters up to 16".
- Max. Roll Diameter: 16" (406mm)
- Core Diameter: 3" (76mm)
- Core Holder: Mechanical Chuck
- Max. Media Width: 8.5" (216mm)
- Full 5-Year Parts and Labor Limited Warranty
CAT-40G-SA High-Torque Rewinders with a Sensor Arm are the solution for rewinding very heavy rolls in-line from a printer, and in applications where extra torque is required. These Rewinders utilize high-torque gear motors that cannot be stalled, but the sensor arm on the units starts and stops the rewind action as dictated by the printer or other external device. CAT-40G-SA Rewinders are bi-directional and equipped with fully adjustable speed control.
- Size: 20"×20"×12" (508x508x305mm)
- Weight: 36 lbs. (16.3-kg)
